NEOPIXEL-Ring

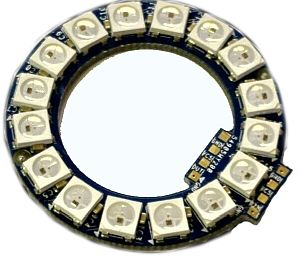

Mit diesem Programm wird mit einem NANO ein NEOPIXEL Ring mit 16 LEDs angesteuert.

Hardware

Die Hardware für die NEOPIXEL Ansteuerung:

• 1 x NANO
• 1 x NEOPIXEL-Ring mit 16 LEDs

Verdrahtung

Die Verdrahtung für den NEOPIXEL-Ring

• NANO PIN 6 -> Daten NEOPIXEL Ring
• 5V -> über 100R an NEOPIXEL Ring
• 0V -> NEOPIXEL Ring

Test-Programm

C++ Code:

/*************************************************************************************************
                                      PROGRAMMINFO
**************************************************************************************************
Funktion: NEOPIXEL-Ring
**************************************************************************************************
Version: 06.05.2021
**************************************************************************************************
Board: NANO
**************************************************************************************************
C++ Arduino IDE V1.8.13
**************************************************************************************************
Einstellungen:
https://dl.espressif.com/dl/package_esp32_index.json
http://dan.drown.org/stm32duino/package_STM32duino_index.json
https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_dev_index.json
**************************************************************************************************
Librarys
- Adafruit_NeoPixel.h V 1.7.0
**************************************************************************************************

 **************************************************************************************************/
#include <Adafruit_NeoPixel.h>
#ifdef __AVR__
  #include <avr/power.h>
#endif

#define NUMPIXELS 16
#define PIN 6

Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800);


void setup() {
  strip.begin();
  strip.setBrightness(50);
  strip.show();
}

void loop() {

  colorWipe(strip.Color(255, 0, 0), 50); // Rot
  colorWipe(strip.Color(0, 255, 0), 50); // Gruen
  colorWipe(strip.Color(0, 0, 255), 50); // Blau

  theaterChase(strip.Color(127, 127, 127), 50); // Weiss
  theaterChase(strip.Color(127, 0, 0), 50); // Rot
  theaterChase(strip.Color(0, 0, 127), 50); // Blau

  rainbow(20);
  rainbowCycle(20);
  theaterChaseRainbow(50);
}

void colorWipe(uint32_t c, uint8_t wait) {
  for(uint16_t i=0; i<strip.numPixels(); i++) {
    strip.setPixelColor(i, c);
    strip.show();
    delay(wait);
  }
}

void rainbow(uint8_t wait) {
  uint16_t i, j;

  for(j=0; j<256; j++) {
    for(i=0; i<strip.numPixels(); i++) {
      strip.setPixelColor(i, Wheel((i+j) & 255));
    }
    strip.show();
    delay(wait);
  }
}

void rainbowCycle(uint8_t wait) {
  uint16_t i, j;

  for(j=0; j<256*5; j++) { // 5 cycles of all colors on wheel
    for(i=0; i< strip.numPixels(); i++) {
      strip.setPixelColor(i, Wheel(((i * 256 / strip.numPixels()) + j) & 255));
    }
    strip.show();
    delay(wait);
  }
}

void theaterChase(uint32_t c, uint8_t wait) {
  for (int j=0; j<10; j++) {  //do 10 cycles of chasing
    for (int q=0; q < 3; q++) {
      for (uint16_t i=0; i < strip.numPixels(); i=i+3) {
        strip.setPixelColor(i+q, c);    //turn every third pixel on
      }
      strip.show();

      delay(wait);

      for (uint16_t i=0; i < strip.numPixels(); i=i+3) {
        strip.setPixelColor(i+q, 0);        //turn every third pixel off
      }
    }
  }
}


void theaterChaseRainbow(uint8_t wait) {
  for (int j=0; j < 256; j++) {     // cycle all 256 colors in the wheel
    for (int q=0; q < 3; q++) {
      for (uint16_t i=0; i < strip.numPixels(); i=i+3) {
        strip.setPixelColor(i+q, Wheel( (i+j) % 255));    //turn every third pixel on
      }
      strip.show();

      delay(wait);

      for (uint16_t i=0; i < strip.numPixels(); i=i+3) {
        strip.setPixelColor(i+q, 0);        //turn every third pixel off
      }
    }
  }
}

uint32_t Wheel(byte WheelPos) {
  WheelPos = 255 - WheelPos;
  if(WheelPos < 85) {
    return strip.Color(255 - WheelPos * 3, 0, WheelPos * 3);
  }
  if(WheelPos < 170) {
    WheelPos -= 85;
    return strip.Color(0, WheelPos * 3, 255 - WheelPos * 3);
  }
  WheelPos -= 170;
  return strip.Color(WheelPos * 3, 255 - WheelPos * 3, 0);
}

RAW code

Warnlicht-Programm Rot/Weiss

C++ Code:

/*************************************************************************************************
                                      PROGRAMMINFO
**************************************************************************************************
Funktion: NEO-Pixel-Ring Rot/Weis Warnlicht
**************************************************************************************************
Version: 06.05.2021
**************************************************************************************************
Board: NANO
**************************************************************************************************
C++ Arduino IDE V1.8.13
**************************************************************************************************
Einstellungen:
https://dl.espressif.com/dl/package_esp32_index.json
http://dan.drown.org/stm32duino/package_STM32duino_index.json
https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_dev_index.json
**************************************************************************************************
Librarys
- Adafruit_NeoPixel.h V 1.7.0
**************************************************************************************************

 **************************************************************************************************/
#include <Adafruit_NeoPixel.h>
#ifdef __AVR__
  #include <avr/power.h>
#endif

#define NUMPIXELS 16
#define PIN 6

Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin();
  strip.setBrightness(50);
  strip.show(); // alle Pixel auf "aus"
}

void loop() {

  // Pixel Kreisel:
  theaterChase(strip.Color(127, 127, 127), 20); // Weiss
  theaterChase(strip.Color(127, 0, 0), 50); // Rot
}

//LED Umlauf
void theaterChase(uint32_t c, uint8_t wait) {
  for (int j=0; j<5; j++) {  //Wechsel nach 3 Runden
    for (int q=0; q < 3; q++) {
      for (uint16_t i=0; i < strip.numPixels(); i=i+3) {
        strip.setPixelColor(i+q, c);    //jeder 3 Pixel on
      }
      strip.show();

      delay(wait);

      for (uint16_t i=0; i < strip.numPixels(); i=i+3) {
        strip.setPixelColor(i+q, 0);        //jeder 3 Pixel off
      }
    }
  }
}

RAW code
